Compliance with Standards:
FAA ETL Certified A/C150/5345-12 (Current Edition)
ICAO Compliant ICAO: Annex 14, para 5.3.3
Applications

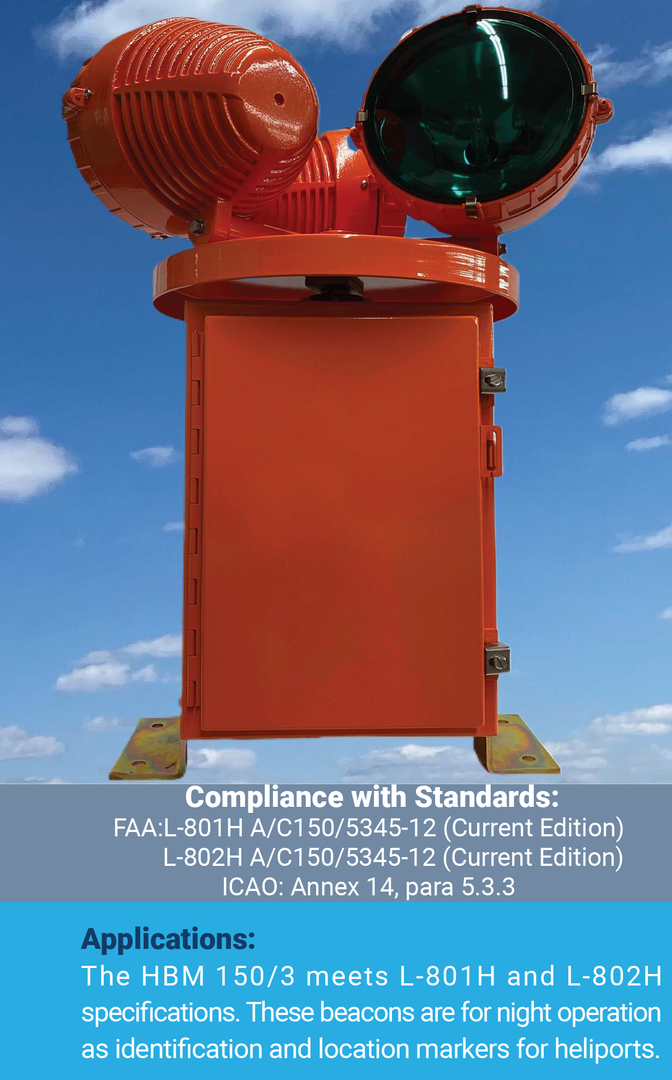

The Hali-Brite Heliport Rotating Beacon is used primarily for night operations at heliports as an identification and location marker. The HBM 150/3 meets specifications for L-801H and L-802H beacons, and features a patented design that makes it maintenance free, except for lamp replacement.
Features
- Patented belt-drive system eliminates the lubrication
maintenance required by conventional gear-drive
beacons (U.S. Pat. 5,339,224) - Patented liquid-filled lamp connector, eliminating the
slip rings and brushes found on conventional beacons
(U.S. Pat. 5,816,678) - Three 14,000 lumen, 150 watt metal-halide lamps
- Typical lamp life (1-3 years)
- One clear, one aviation green, and one yellow lens
- Available in Hospital Heliport version (not FAA certified)
- NO maintenance except lamp replacement
- All moving parts are permanently lubricated
- Impedance-protected motor eliminates burnouts
- Lamps preset 5° above horizontal, adjustable
- 12 RPM rotation, 36 flashes/minute
- Weatherproof steel cabinet, powder coated international
orange - Optional stainless steel cabinet & bearings for highly
corrosive environments - Class I (No Heater) normal operating temperature
range: 0°F to +131°F (-18°C to +55°C) - Class 2 (With Heater) normal operating temperature
range: -67°F to +131°F (-55°C to +55°C) - Tested to wind velocities of 100 mph
- Optional photocell and/or tell-tale relay
- Mountable on a Hali-Brite Tipdown Pole
- Military version available
- Power Consumption: 595W Class I, 995W Class II
- Manufactured in the USA
Worldwide shipping available!
Ordering Information
| Part Number | Description |
| L801H7116 | 120v, 60hz, Class I, Heliport |
| L801H7116H | 120v, 60hz, Class I, Hospital Heliport |
| L801H7116M | 120v, 60hz, Class I, Military Heliport |
| L801H7126 | *220-240v, 60hz, Class I, Heliport |
| L801H7126H | *220-240v, 60hz, Class I, Hospital |
| L801H7216 | 120v, 60hz, Class II, Heliport |
| L801H7216H | 120v, 60hz, Class II, Hospital Heliport |
| L801H7226 | *220-240v, 60hz, Class II, Heliport |
| L801H7226H | *220-240v, 60hz, Class II, Hospital Heliport |
Options
| Part Number | Description |
| L801/802 T/T HBM 120 | Tell-Tale Relay 120V |
| L801/802 T/T HBM 240 | Tell-Tale Relay 240V 60Hz |
| L801 HBM SS | For corrosive environment installations/ installations within 100mi of seawater: stainless steel cabinet, bearings, legs and hardware throughout. |
| 4200-0000A | Tower Mounting Kit: Creates a platform from 36″ Beacon to all current model beacons |
| 4200-0001A | Tower Mounting Kit, Stainless Steel |
Replacement Parts
| Part Number | Description |
| 0200-0007 | Ballast, 120/240 VAC, 60 Hz |
| 0600-0003 | Belt |
| 2300-0002 | Motor Fuse, 1/2 amp |
| 2300-0012 | Lamp Fuse, 8 amp |
| 3400-0125B | Lamp, 150 watt |
| 2800-0006 | Lens, Clear |
| 2800-0043 | Lens, Green |
| 2800-0025 | Lens, Amber |
| 2800-0010 | Lens, Red |
| 2800-0026 | Lens, Split Beam |
| 1500-0011 | Lens Clip |

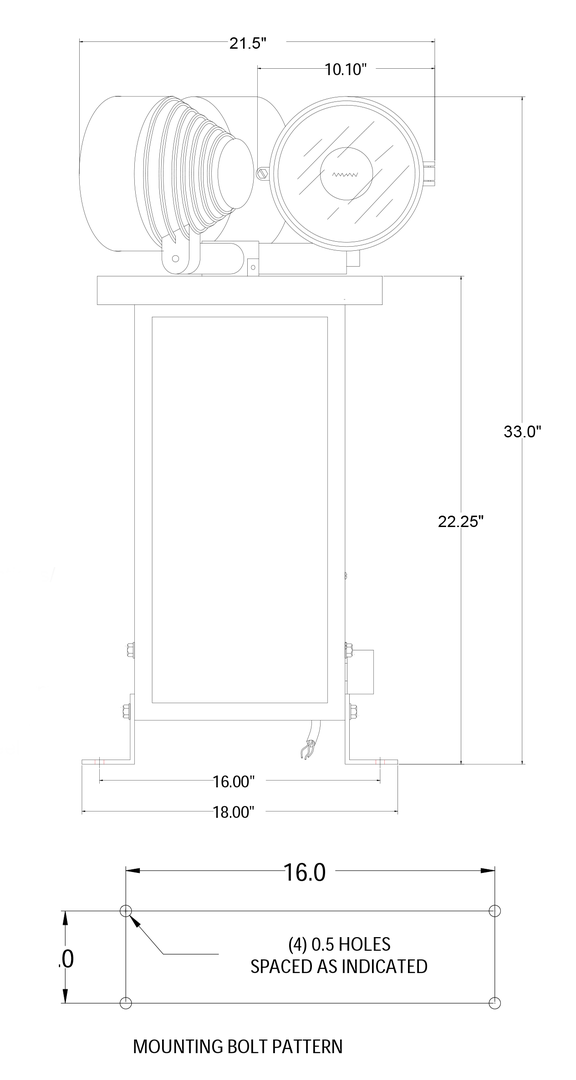

Shipping Information
Unpackaged Weight: 96 pounds
Shipping Weight: 124 pounds
Shipping Volume: 48”x28”x25”
