Compliance with Standards:
FAA: L-802M A/C150/5345-12 (Current Edition)
Applications

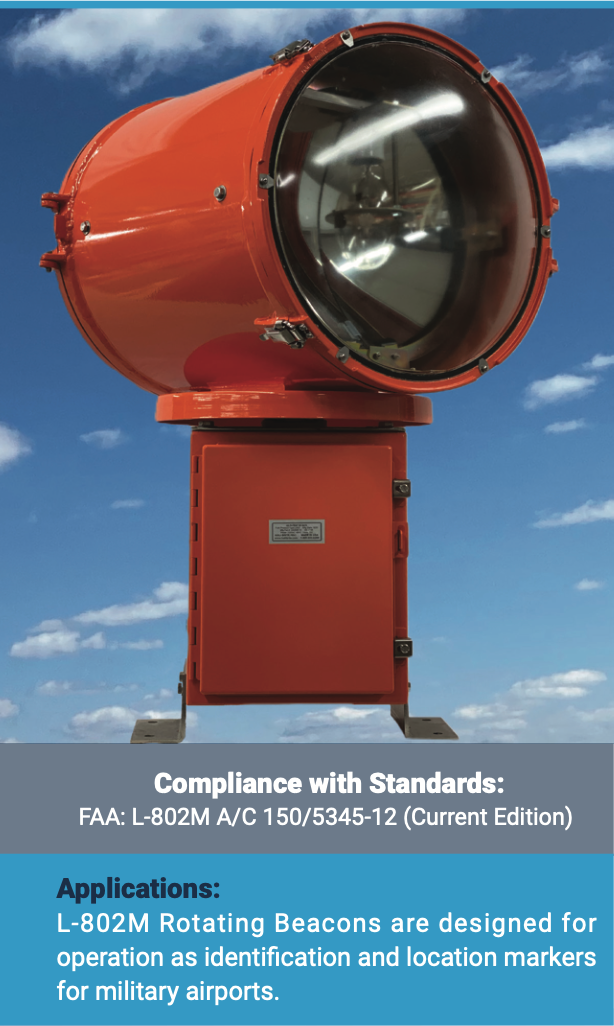

The L-802M Hali-Brite Airport Rotating Beacon is used primarily for night operations at military airports as an identification and location marker. With two 320-watt metal-halide lamps, the dual-light beacon (dual-beam clear and aviation green lenses) features a patented design that makes it maintenance free, except for lamp replacement.
Features
- FAA Certified L-802M A/C 150/5345-12 (Current
Edition) - Patented belt-drive system eliminates the lubrication
maintenance required by conventional gear-drive
beacons (U.S. Pat. 5,339,224) - Patented liquid-filled lamp connector, eliminating the
slip rings and brushes found on conventional beacons
(U.S. Pat. 5,816,678) - Two 34,000 lumen, 320 watt pulse-start metal-halide
lamps - Pulse-start lamps are fully bright in 3-5 minutes
- typical lamp life 3-5 years
- One white dual-beam lens, one aviation green lens
- NO maintenance except lamp replacement
- All moving parts are permanently lubricated
- Thermally-protected motor eliminates burnouts
- Lamps preset 5o above horizontal, adjustable 2-10°
- 6 RPM rotation, 18 flashes/minute
- Weatherproof steel cabinet, powder coated international
orange - Optional stainless steel cabinet & bearings for highly
corrosive environments - Class I (No Heater) normal operating temperature
range: 0°F to +131°F (-18°C to +55°C) - Class 2 (With Heater) normal operating temperature
range: -67°F to +131°F (-55°C to +55°C) - Heater thermostatically controlled to engage at 0°F
- Certified to wind velocities of 100 mph
- Can operate with photocell and/or tell-tale relay
- Mountable on a Hali-Brite® Tipdown Pole
- Power Consumption: 793 W Class I, 1193 W Class II
- Manufactured in the USA
Ordering Information
| Part Number | Description |
| L802M6116 | 120v, 60hz, Class 1 (no heater) |
| L802M6125 | *220-240v, 50hz, Class 1 (no heater) |
| L802M6126 | *220-240v, 60hz, Class 1 (no heater) |
| L802M6216 | 120v, 60hz, Class 2 (with heater) |
| L802M6225 | *220-240v, 50hz, Class 2 (with heater) |
| L802M6226 | *220-240v, 60hz, Class 2 (with heater) |
*220-240v Models are for overseas applications,
(220-240 volts LINE TO NEUTRAL)
Options
| Part Number | Description |
| L801/802 T/T 120 | Tell-Tale Relay 120V |
| L801/802 T/T 240 | Tell-Tale Relay 240V 60Hz |
| L801 HBM SS | For corrosive environment installations/ installations within 100mi of seawater: stainless steel cabinet, bearings, legs and hardware throughout. |
| 4200-0000A | Tower Mounting Kit: Creates a platform from 36″ Beacon to all current model beacons |
| 4200-0001A | Tower Mounting Kit, Stainless Steel |
Replacement Parts
| Part Number | Description |
| 0200-0027 | Ballast Assembly, 60 Hz |
| 0600-0004 | Belt |
| 2300-0003 | Lamp fuse, 10 amp |
| 2300-0002 | Motor fuse, 1/2 amp |
| 3400-0136 | Lamp, 320-watt pulse-start |
| 2800-0056 | Lens, aviation white |
| 2800-0057 | Lens, aviation green |
| 0100-3825 | Lens clip |
Shipping Information
Unpackaged Weight: 155 pounds
Shipping Weight: 225 pounds
Shipping Volume: 48″x40″x33″
